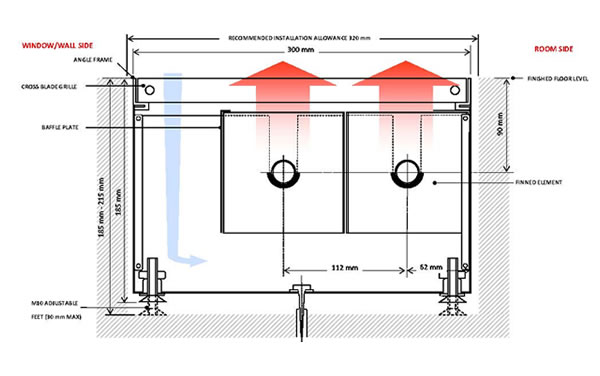

LPHW Units - TYPE T12.O 300 W x 185 H

Type T12-0 - Buried Heating Systems - In-Floor Heaters

TYPE T12.O 300 mm Wide x 185 mm High
Finned Element: 2 Qty. 108 mm x 108 mm on 22 mm Ø pipe
UNCORRECTED Heat Output: 1053 watts/metre of active Finned Element
CORRECTED Heat Output at 82/71°C & 20°C eat: 959 watts/metre of active Finned Element
CORRECTED Heat Output at 80/60°C & 20°C eat: 810 watts/metre of active Finned Element

Click here for pdf file
Print This Page







Standard Dimensions

TYPE T2 300 W x 90 H
TYPE T2.OS 250 W x 90 H
TYPE T5.O. 150 W x 150 H
TYPE T5.OSR. 150 W x 150 H
TYPE T6. 250 W x 150 H
TYPE T6.O 225 W x 150 H
TYPE T9. 225 W x 185 H
TYPE T9.O 200 W x 185 H
TYPE T12. 350 W x 185 H
TYPE T12.O 300 W x 185 H
TYPE T12.OV 175 W x 300 H
TYPE T13. 250 W x 225 H
TYPE T13.O 225 W x 225 H
TYPE T14. 350 W x 300 H
TYPE T14.O 300 W x 300 H
TYPE T16.O 3x75+35 325 W x 175 H
TEST PERFORMANCE DATA TO DIN EN 16430
Download TRENCH HEATER UNITS Installation Manual pdf file
